Systems Theory in CRM: Guide to Sales Process Automation

⚜AI-generated images Details

It is 2026, and the concept of a static “sales funnel” is now obsolete. For years, managers have treated sales as a linear process: leads enter from the top and customers exit from the bottom, with physiological loss along the way. However, anyone who has managed a high-performance sales team knows that reality is much more complex. The market is a dynamic, chaotic system subject to sudden fluctuations. For this reason, sales process automation must evolve, abandoning simple “if-this-then-that” rules to embrace the principles of electronic engineering and Systems Theory.

In this technical guide, we will explore a revolutionary approach: modeling the sales flow as a feedback loop and using a PID controller (Proportional-Integral-Derivative) to manage lead distribution. This method not only optimizes the conversion rate but acts as a homeostatic system that protects human capital from burnout by regulating work “pressure” in real time.

The Problem: Why Linear Systems Fail

Most modern CRMs (Salesforce, HubSpot, Microsoft Dynamics) manage lead assignment via Round Robin algorithms or static rules (e.g., “If Region = Lombardy, assign to Mario”). This approach has three fatal structural flaws in a high-volume environment:

• Lack of Memory (No Integral Action): If an agent received 10 difficult leads yesterday and did not close them, the system will assign another 10 today, ignoring the accumulated cognitive load (the emotional and operational “backlog”).
• Future Blindness (No Derivative Action): The system does not react to the speed at which leads are arriving. If a marketing campaign is about to explode, the linear system continues assigning at the standard rate until it is too late and the team is saturated.
• Static Response (Fixed Proportional Gain): There is no adaptation to the agent’s variable capacity in real time.

To solve this problem, we must stop thinking like managers and start thinking like control engineers.

Applied Systems Theory: The CRM as a Closed Loop

In Systems Theory, a negative feedback system is designed to maintain a process variable (PV) close to a desired value (Set Point, SP), despite external disturbances. In our context of sales process automation, we map the variables as follows:

• Set Point (SP): An agent’s ideal load capacity (e.g., 5 active leads in simultaneous negotiation phase).
• Process Variable (PV): The current number of active leads in the CRM for that agent.
• Error (e): The difference between SP and PV (SP – PV). A positive error means the agent is “hungry”; a negative error means they are “saturated”.
• Control Output (u): The probability or frequency with which the next lead will be assigned to that agent.

The PID Controller: The Heart of the Algorithm

The PID controller calculates the output based on three terms:

1. Proportional Term (P): Looks at the present. “How far is the agent from their ideal load now?”. If the agent is very light on work, we drastically increase assignment.
2. Integral Term (I): Looks at the past. “How long has the agent been overloaded or underloaded?”. This corrects systematic errors. If an agent closes slowly, the integral accumulates this “lag” and reduces future assignment to allow them to recover.
3. Derivative Term (D): Looks at the future. “How fast is the pipeline filling up?”. If leads are entering too quickly, the derivative term brakes the assignment before the agent reaches saturation, preventing stress peaks (overshoot).

Technical Prerequisites and Tech Stack

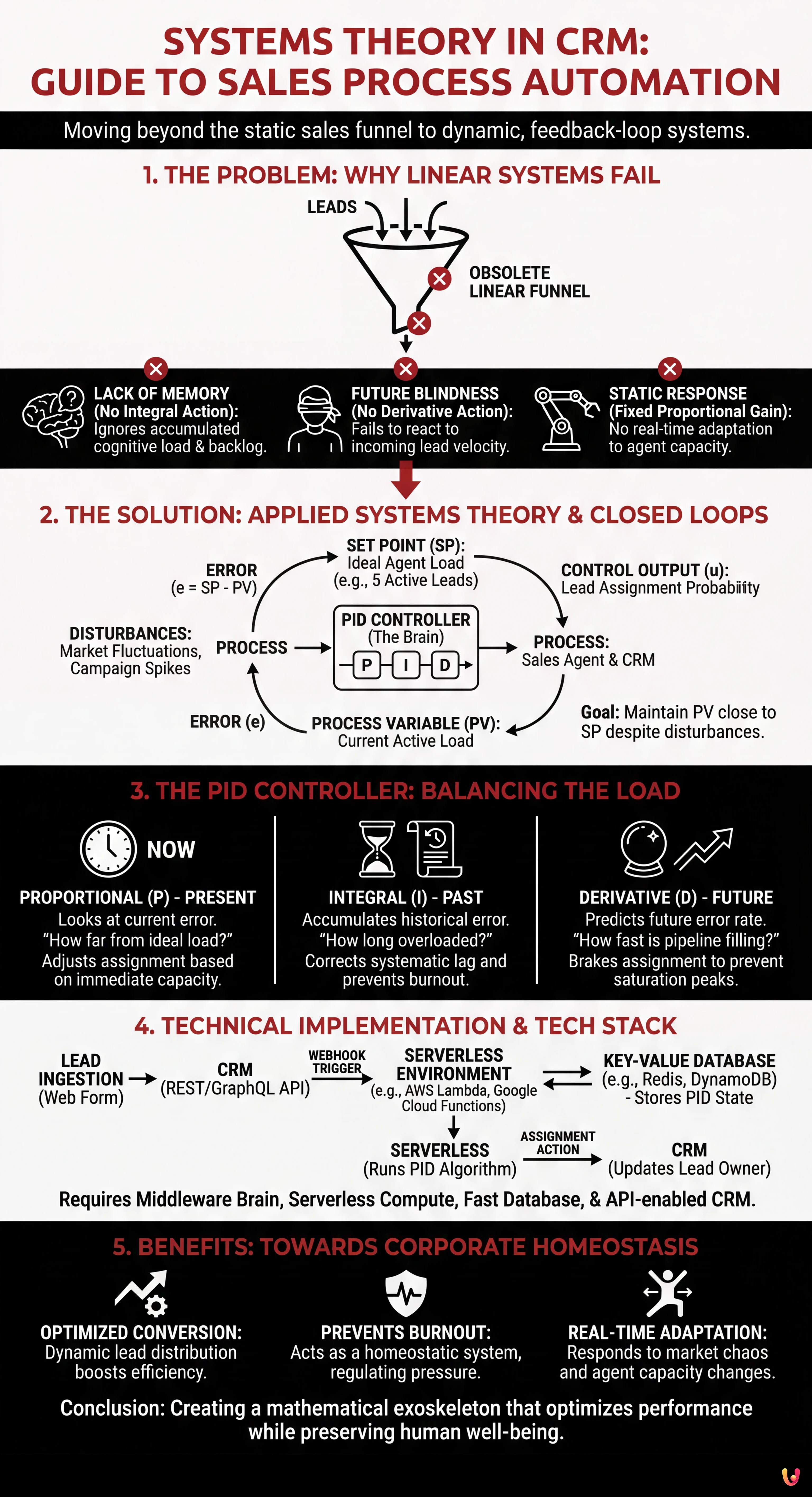

AI-generated image

To implement this system, the CRM graphical interface is not enough. A middleware acting as a “brain” is required.

• CRM with REST/GraphQL API: (e.g., Salesforce, HubSpot, Pipedrive).
• Serverless Environment: AWS Lambda, Google Cloud Functions, or Azure Functions. This is ideal for handling incoming webhooks without maintaining an always-on server.
• Key-Value Database: Redis or DynamoDB to store the PID “state” (previous integral and derivative values) for each agent.
• Language: Python or Node.js (we will use Python in the examples for its mathematical readability).

Step-by-Step Implementation Guide

Phase A: Defining the Agent Data Model

In our database (e.g., DynamoDB), each agent must have a state record that goes beyond simple personal data. We need to track the PID variables.

{
  "agent_id": "AG-1024",
  "set_point": 15,  // Ideal capacity of open leads
  "current_load": 12, // Current active leads
  "integral_error": 4.5, // Historical error accumulation
  "last_error": 3, // Error at previous cycle (for derivative)
  "last_update": "2026-01-11T10:00:00Z"
}

Phase B: The PID Algorithm in Python

We create a function that is triggered every time a new lead enters the system (via Webhook) or periodically (Cron job) to recalculate assignment scores. Here is a simplified logic of the controller:

import time

def calculate_pid_score(agent, current_load):
    # Tuning coefficients (to be calibrated experimentally)
    Kp = 1.5  # Proportional Gain
    Ki = 0.1  # Integral Gain
    Kd = 0.5  # Derivative Gain

    # 1. Calculate Current Error
    # Set Point is the ideal agent capacity
    error = agent['set_point'] - current_load

    # 2. Calculate Integral Term
    # dt is the time elapsed since last calculation
    current_time = time.time()
    dt = current_time - agent['last_update_timestamp']

    # Anti-Windup: limit the integral to prevent infinite growth
    new_integral = agent['integral_error'] + (error * dt)
    new_integral = max(min(new_integral, 100), -100)

    # 3. Calculate Derivative Term
    derivative = (error - agent['last_error']) / dt if dt > 0 else 0

    # 4. PID Output
    output_score = (Kp * error) + (Ki * new_integral) + (Kd * derivative)

    # Update state in DB for next cycle
    update_agent_state(agent['id'], error, new_integral, current_time)

    return output_score

In this scenario, output_score represents the agent’s “suitability score”. The higher the score, the higher the probability that the routing system will assign the next lead to them.

Phase C: Serverless Integration

The architecture for PID-based sales process automation follows this flow:

1. Ingestion: A lead fills out a form. The CRM receives the data.
2. Trigger: The CRM sends a Webhook to an API Gateway endpoint (e.g., AWS).
3. Processing (Lambda):
   • The Lambda function queries the CRM to get the current load of all available agents.
   • It retrieves the historical state (Integral/Derivative) from DynamoDB.
   • It runs the PID algorithm for each agent.
   • It sorts agents by descending output_score.
4. Action: The Lambda calls the CRM API to assign the lead to the agent with the highest score (or uses a weighted distribution based on scores).

System Tuning: Avoiding Oscillation

One of the biggest risks in applying control theory to humans is oscillation. If the proportional gain (Kp) is too high, the system might assign too many leads to an agent as soon as they become free, saturating them immediately, and then stop assigning any at all, creating a cycle of “feast and famine”.

Tuning Strategies:

• Damping: Increase the Derivative term (Kd). This acts as a brake. If the agent’s load is rising too fast, the derivative becomes negative and reduces the total score, even if the agent is technically still below the Set Point.
• Deadband: Define a tolerance threshold. If the error is minimal (e.g., +/- 1 lead), do not drastically modify the assignment. This reduces “noise” in the system.
• Integral Reset: It is crucial to reset the integral term when the agent goes on vacation or changes roles to prevent “historical memory” from erroneously influencing new assignments.

Troubleshooting and Common Scenarios

Even with excellent sales process automation, problems can arise. Here is how to solve them:

Scenario 1: The expert agent receives no leads (Integral Windup)

Cause: The agent had a period of slow performance or vacation, accumulating a negative error in the integral.

Solution: Implement a “decay” mechanism on the integral. Every day, the accumulated value must be multiplied by a factor < 1 (e.g., 0.9), progressively forgetting the remote past.

Scenario 2: New agents burn out immediately

Cause: Their Set Point is set to the same level as seniors, or Kp is too aggressive.

Solution: Implement a “Ramp-up Set Point”. The SP value in the database must be a function of tenure in the company (e.g., month 1 = 5 leads, month 6 = 20 leads).

Conclusions

Applying Systems Theory to CRM transforms the sales department from a dumb assembly line into a living organism capable of homeostasis. The PID algorithm does not just distribute contacts; it “feels” the team’s pulse, slowing down when pressure rises and accelerating when there is excess capacity.

This is the true frontier of sales process automation: not replacing humans, but creating a mathematical exoskeleton that optimizes their performance while preserving their well-being. Implementing this system requires hybrid skills between software development and sales operations, but the result is operational efficiency that linear systems can never match.
